WalkingPlus Bullet (T600)

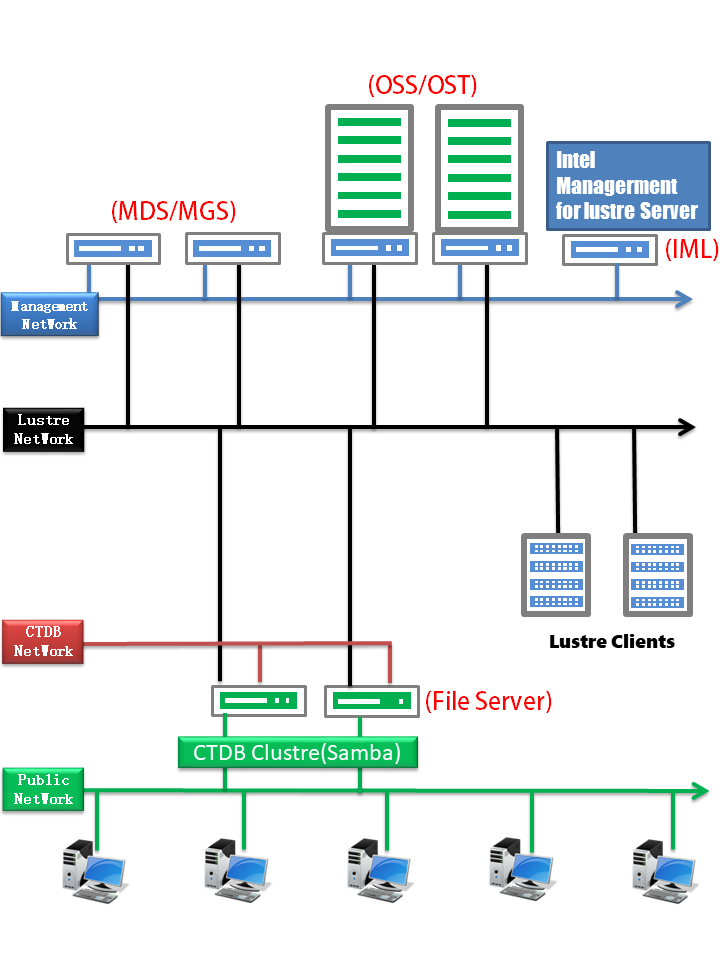

系統架構圖 (叢集式中央儲存設備架構圖)





叢集式儲存系統

規劃建置之容量600TB~1.2PB (或更高)

1.提供4K影片線上及時剪輯

2.線上擴充硬碟容量

各項服務器硬體規格:

---

Lustre Metadata Service (MDS)

Storage Server Barebone(2U12bay)
Intel® Xeon® processor E5-2600 v4 family CPU *2
DDR4 ECC RAM (128G)
InfiniBand 56Gb 介面 *1
IPMI 2.0 Lan Port * 1

---

Lustre Management Service (MGS)

Storage Server Barebone(2U12bay)
Intel® Xeon® processor E5-2600 v4 family CPU *2
DDR4 ECC RAM (128G)
InfiniBand 56Gb 介面 *1
IPMI 2.0 Lan Port * 1

---

Lustre Object Storage Service (OSS+OST)

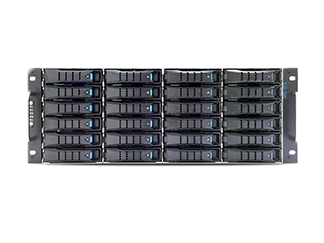

Storage Server Barebone (4U36bay)
Intel® Xeon® processor E5-2600 v4 family CPU *2
DDR4 ECC RAM (128G)
InfiniBand 56Gb 介面 *1
IPMI 2.0 Lan Port * 1

---

Intel Manager for Lustre (IML)

Storage Server Barebone (2U12bay)
Intel® Xeon® processor E5-2600 v4 family CPU *2
DDR4 ECC RAM (32G)
IPMI 2.0 Lan Port * 1

---



CIFS/NFS Gateway to Lustre (File Server/CTDB Clustre)

Storage Server Barebone (2U12bay)
Intel® Xeon® processor E5-2600 v4 family CPU *2
DDR4 ECC RAM (128G)
InfiniBand 56Gb 介面 *1
Ethernet 40Gb 介面*1
